Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)

Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)
Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)

Bolt Energy 51V 105AH Square Standard Battery with CAN Adapter Kit for ICON (2017-2023)

Item # 33-688S

In Stock

Freight Type: Standard

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

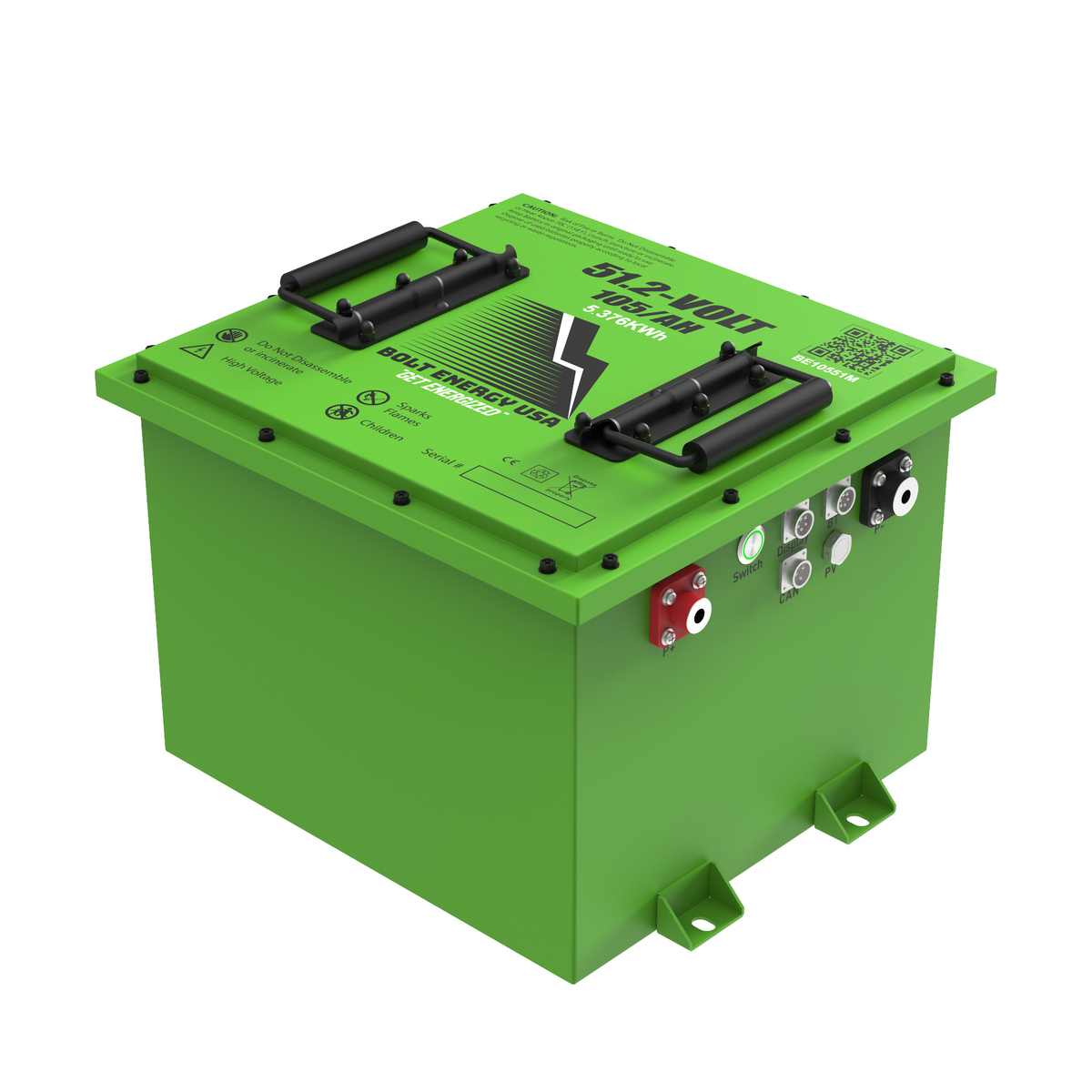

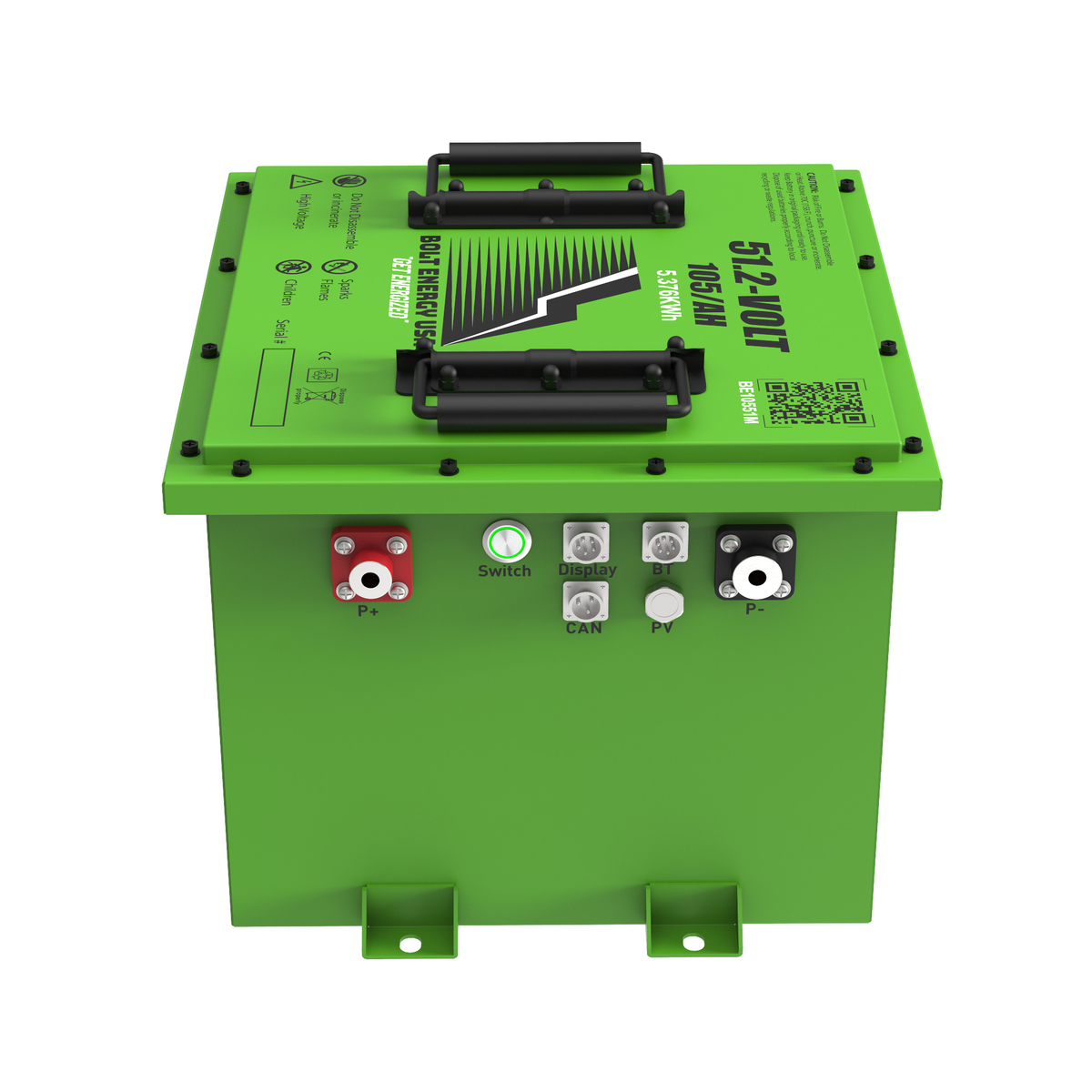

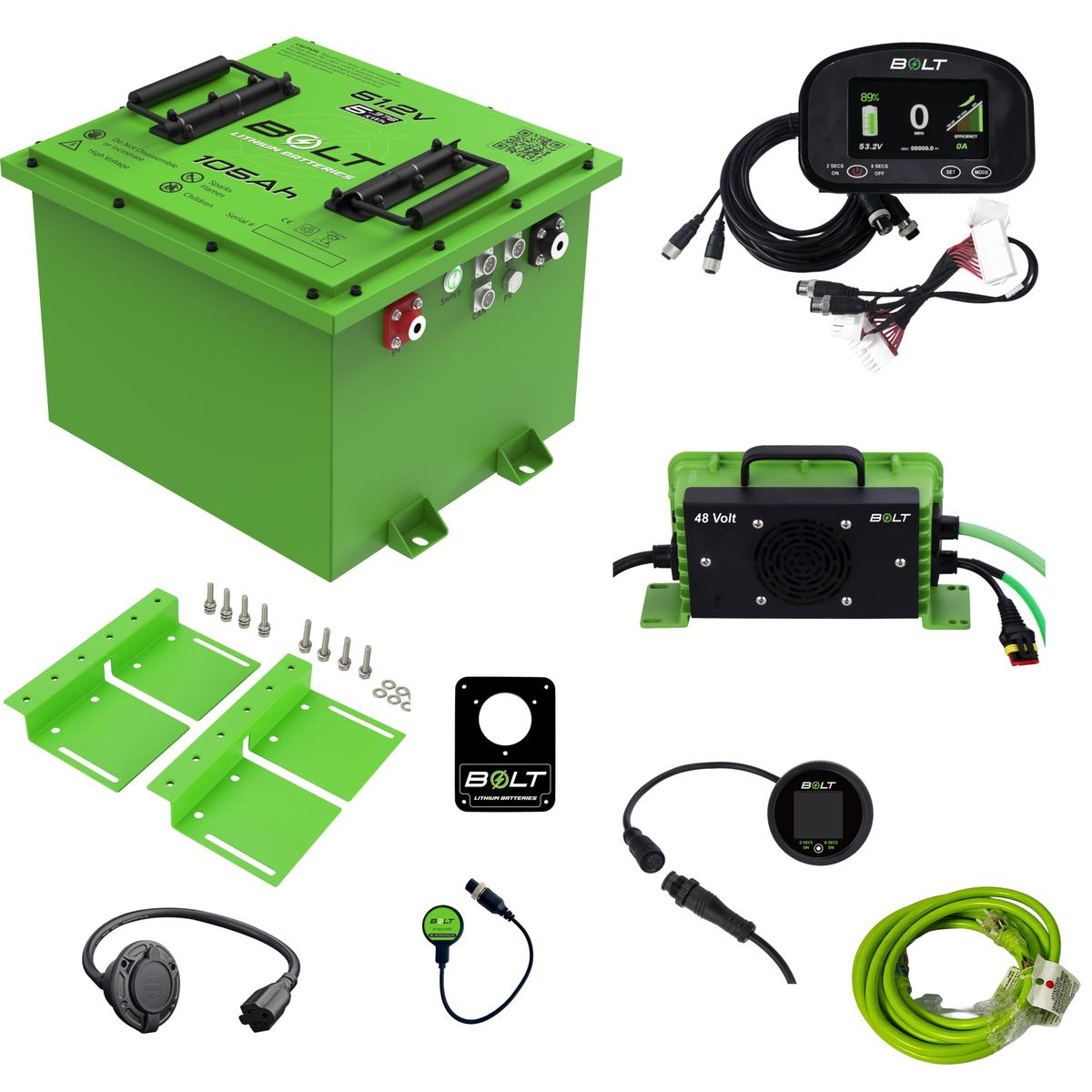

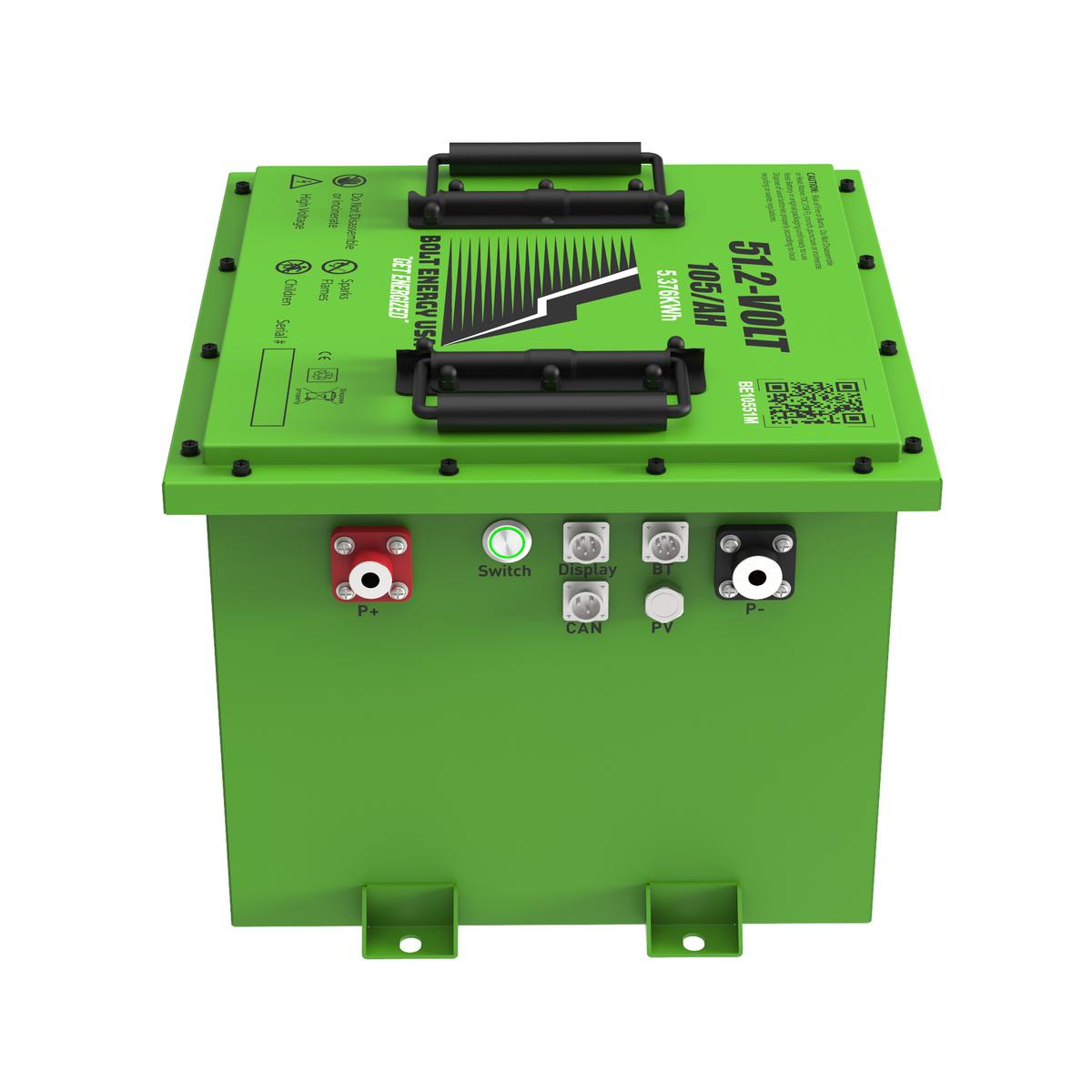

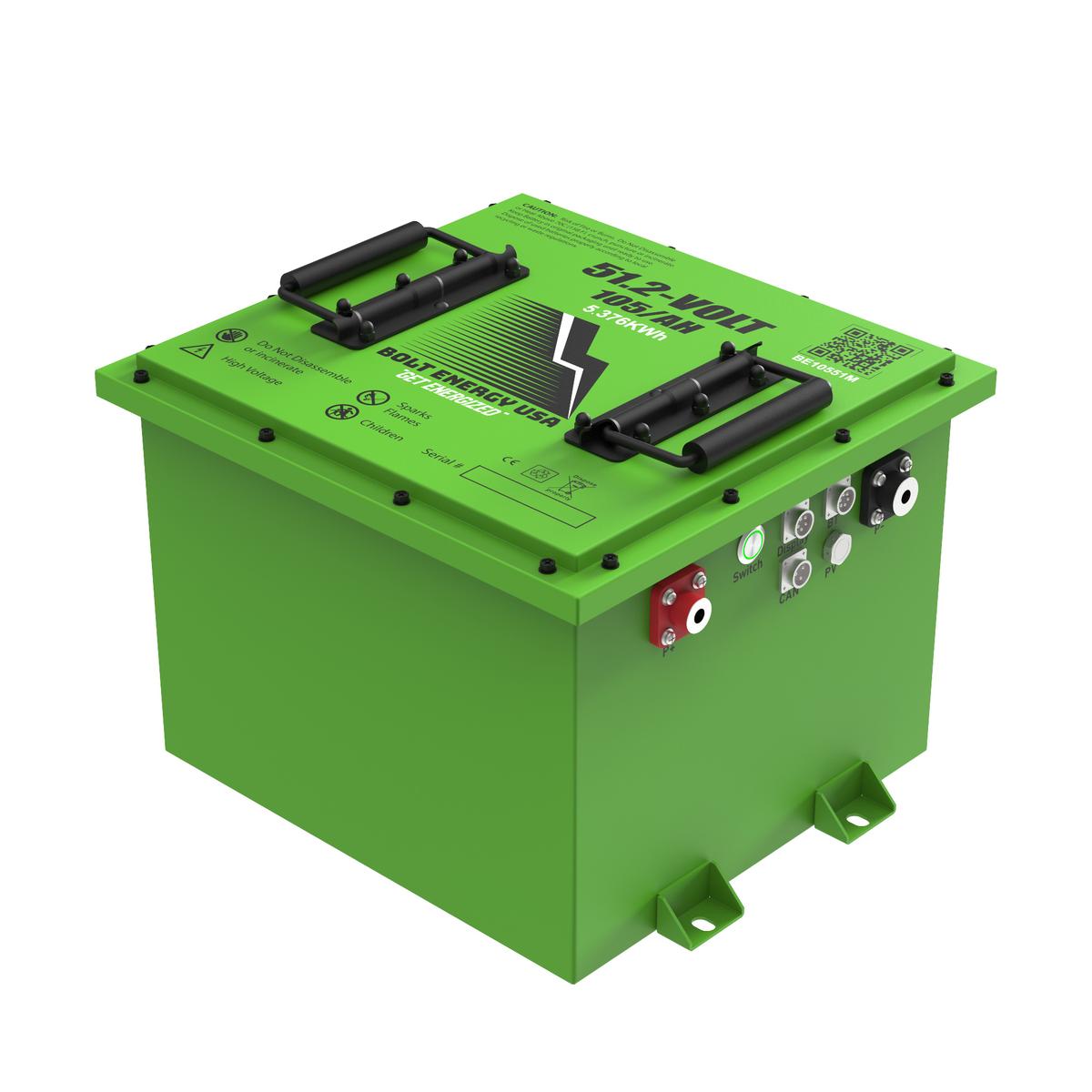

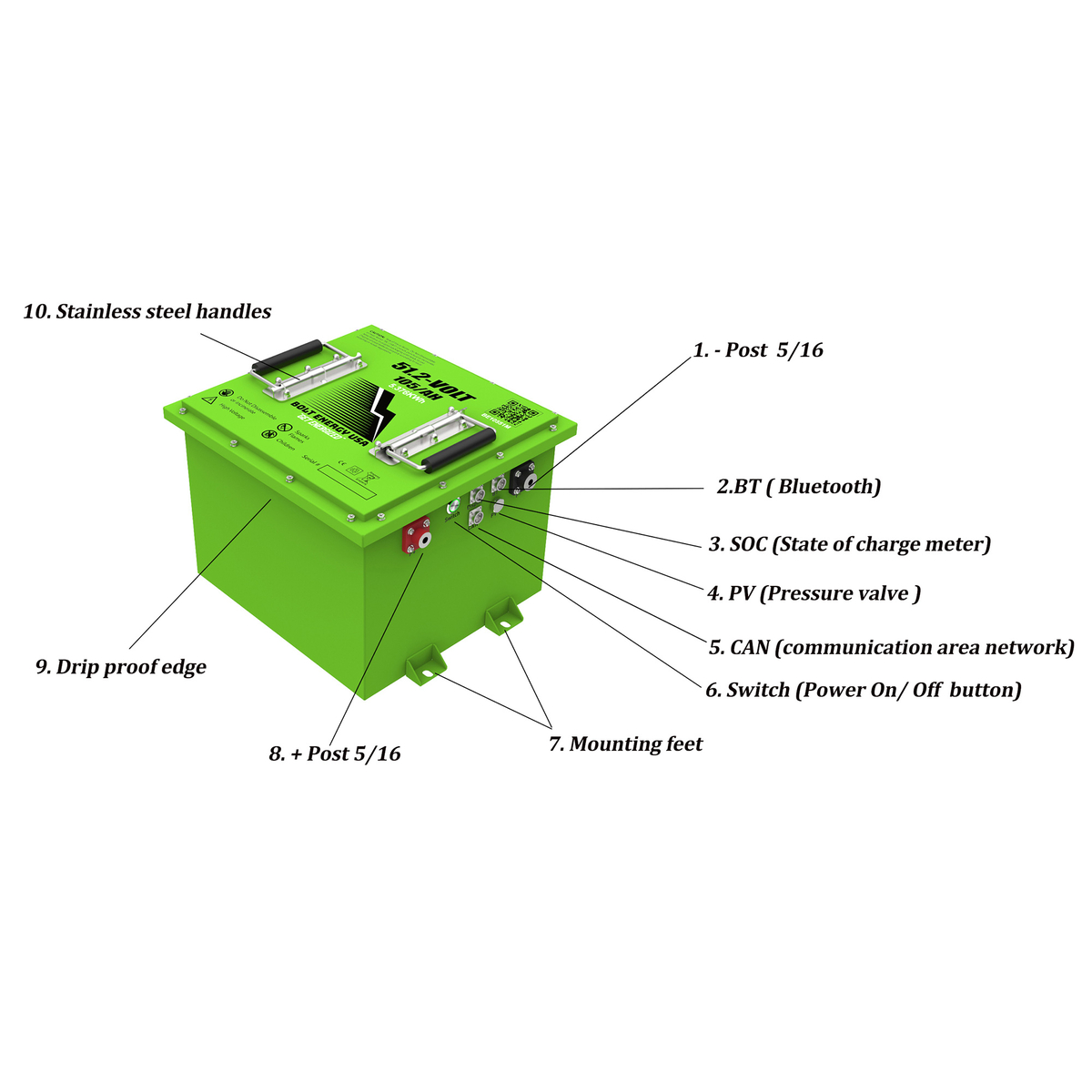

51.2V 105Ah Square Battery with Standard Kit with gauge cluster and CAN Adapter for ICON 2017-2023 models

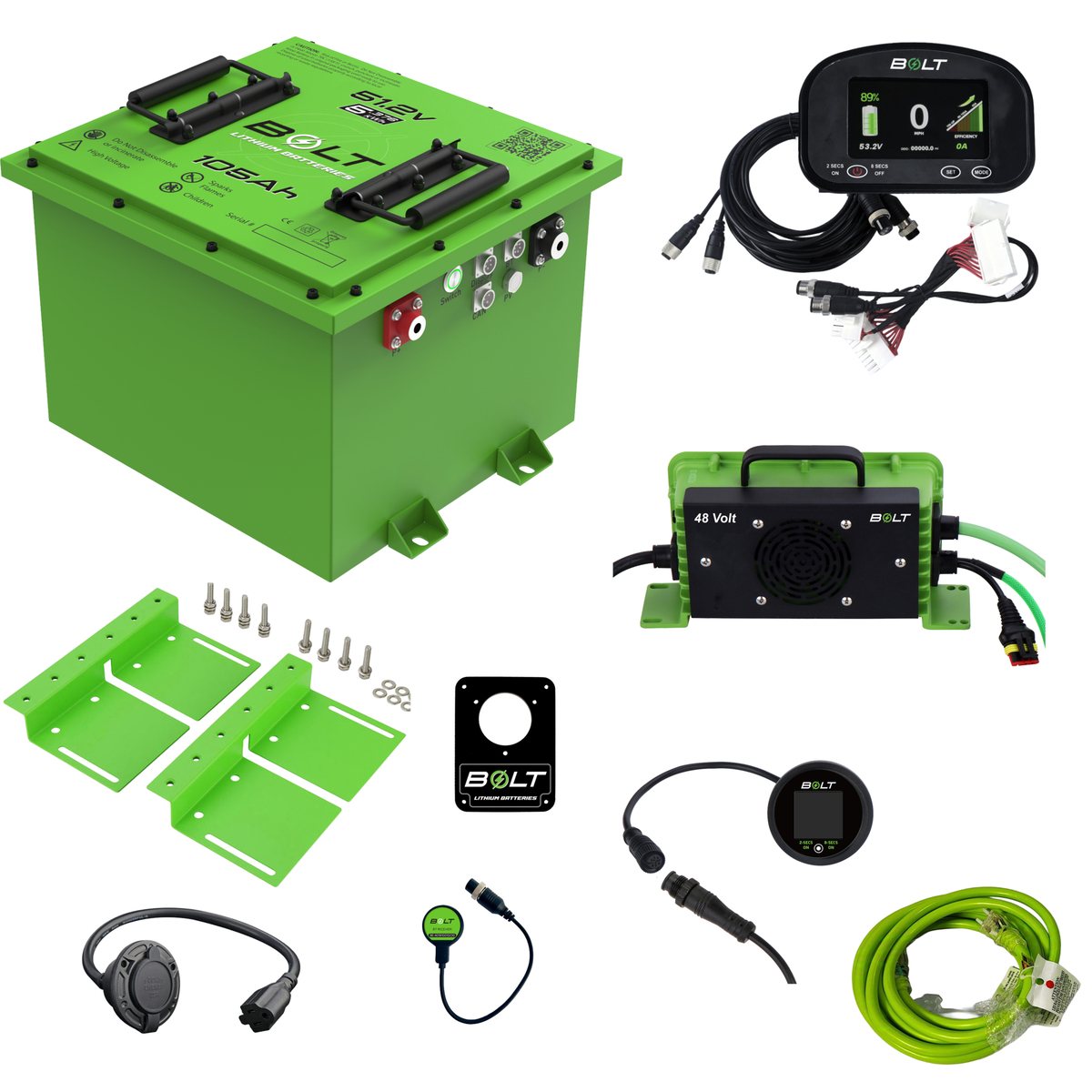

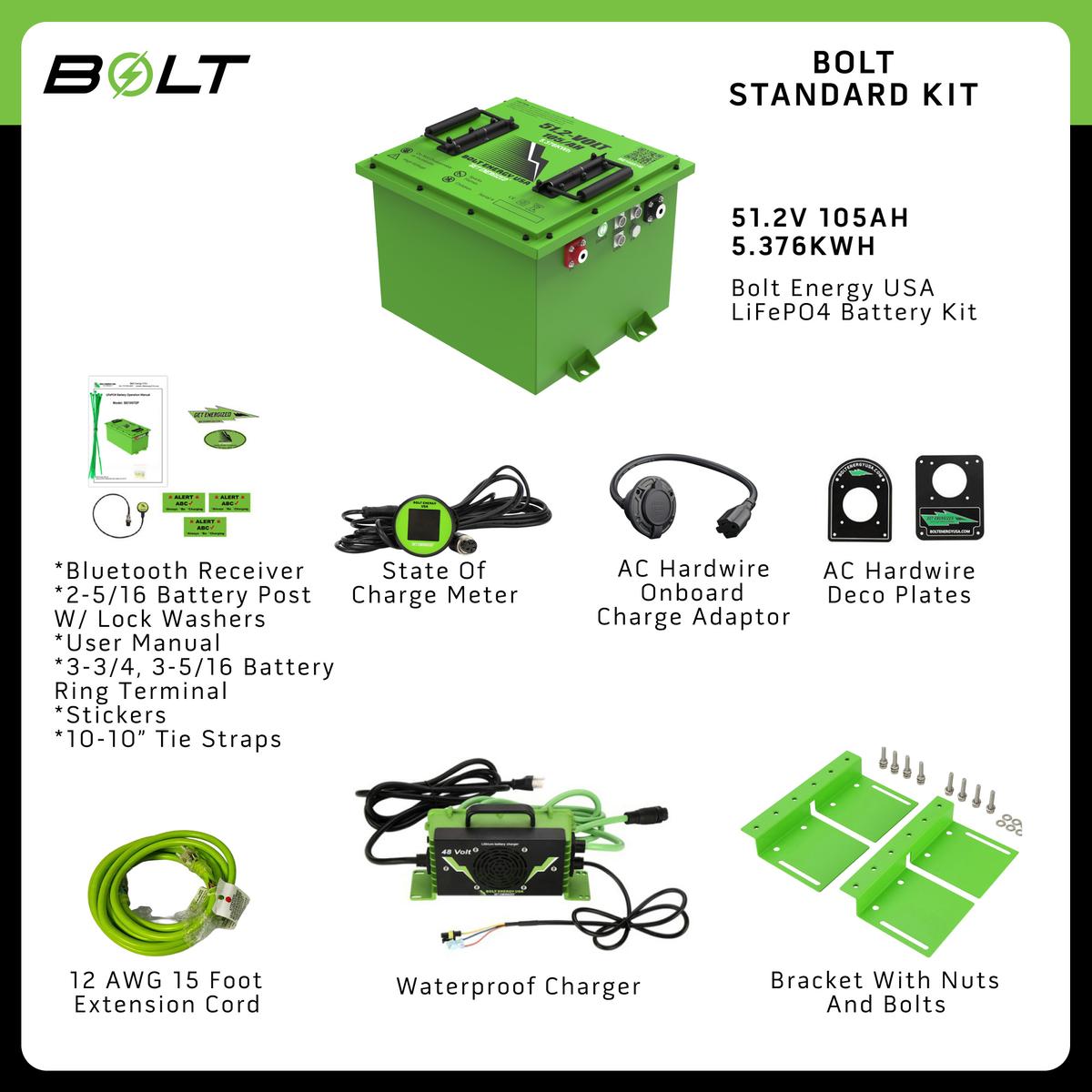

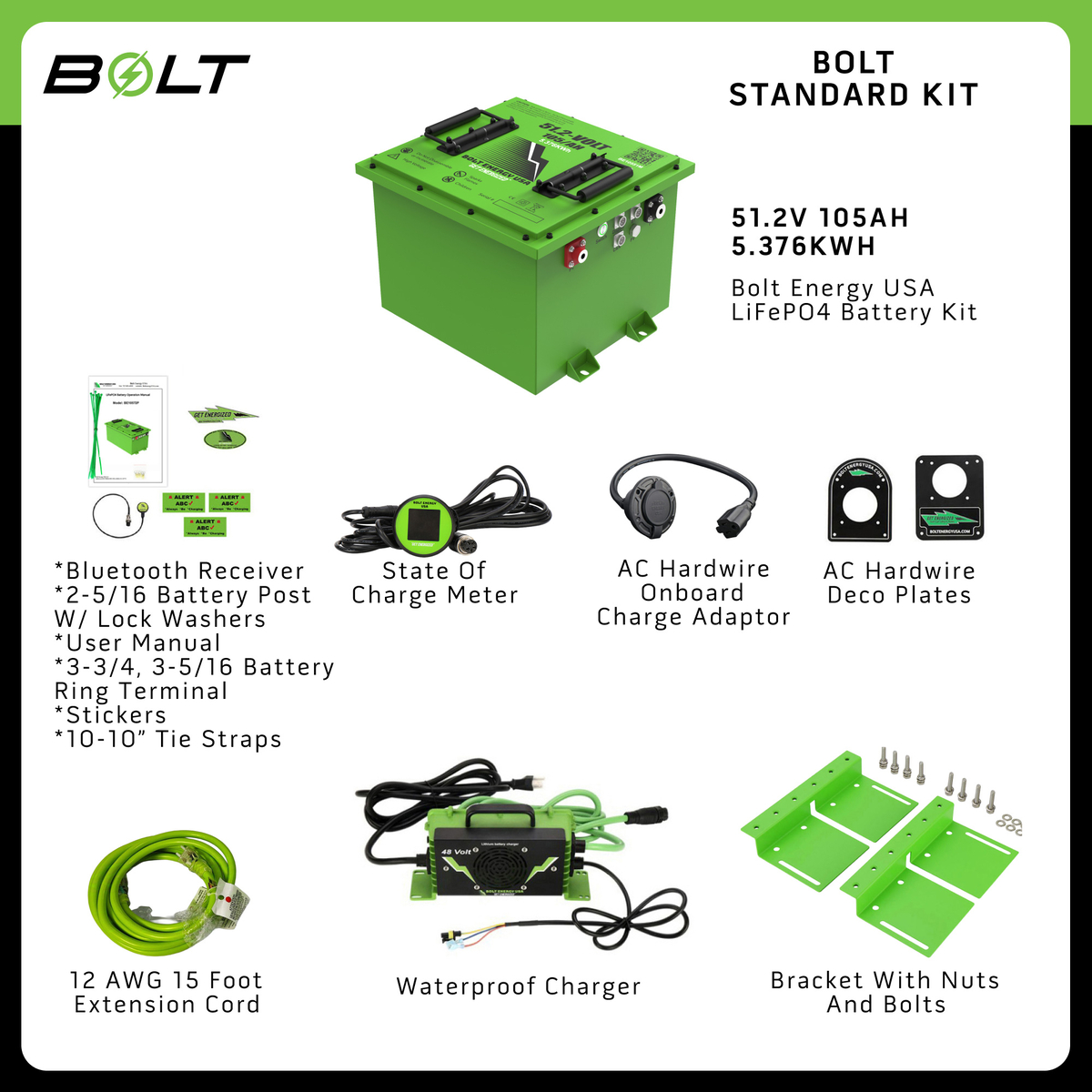

Standard Kit Includes:

  • 51.2V 105Ah Square Battery
  • Bluetooth receiver
  • Smart SOC (State of charge meter)
  • Owner’s manual
  • Six 3/8 battery ring terminal connectors
  • Ten 10" tie straps
  • Bolt Energy USA stickers

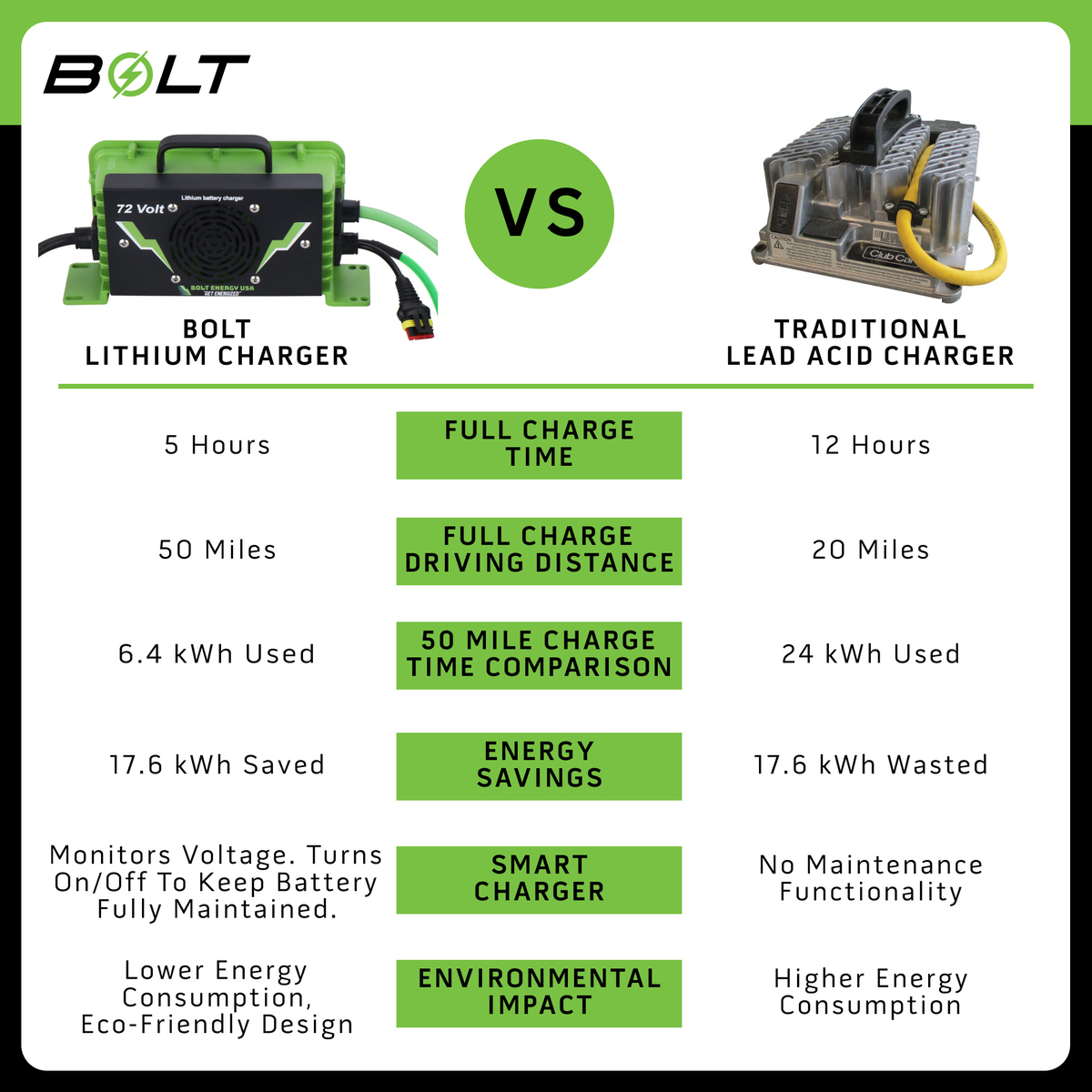

  • Waterproof high-speed charger
  • Mounting brackets, Nuts, and bolts
  • AC Hardwire Port
  • AC hardwire DECO cover plates
  • 15ft 12 AWG Green lighted extension cord

Also includes a gauge cluster and CAN adapter designed for ICON models - 33-039

Electrical Specifications:

  • Nominal Voltage: 51.2V
  • Working Voltage: 43.2 – 58.4V
  • Recommended Voltage: 48.0V – 57.0V
  • Nominal Capacity: 105Ah
  • Energy: 5,376Wh
  • Capacity at 25A: 252 min
  • Efficiency: 0.99
  • Self-Discharge: <3% per Month

Discharge Specifications:

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 40V
  • Recommended Low Voltage Disconnect: 48.0V
  • BMS Reconnect Voltage: 41.6V
  • Discharge Temperature: -4 to 149°F (-20 to 65°C)

Charge Specifications:

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 58.5V
  • Reconnect Voltage: <58.5V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

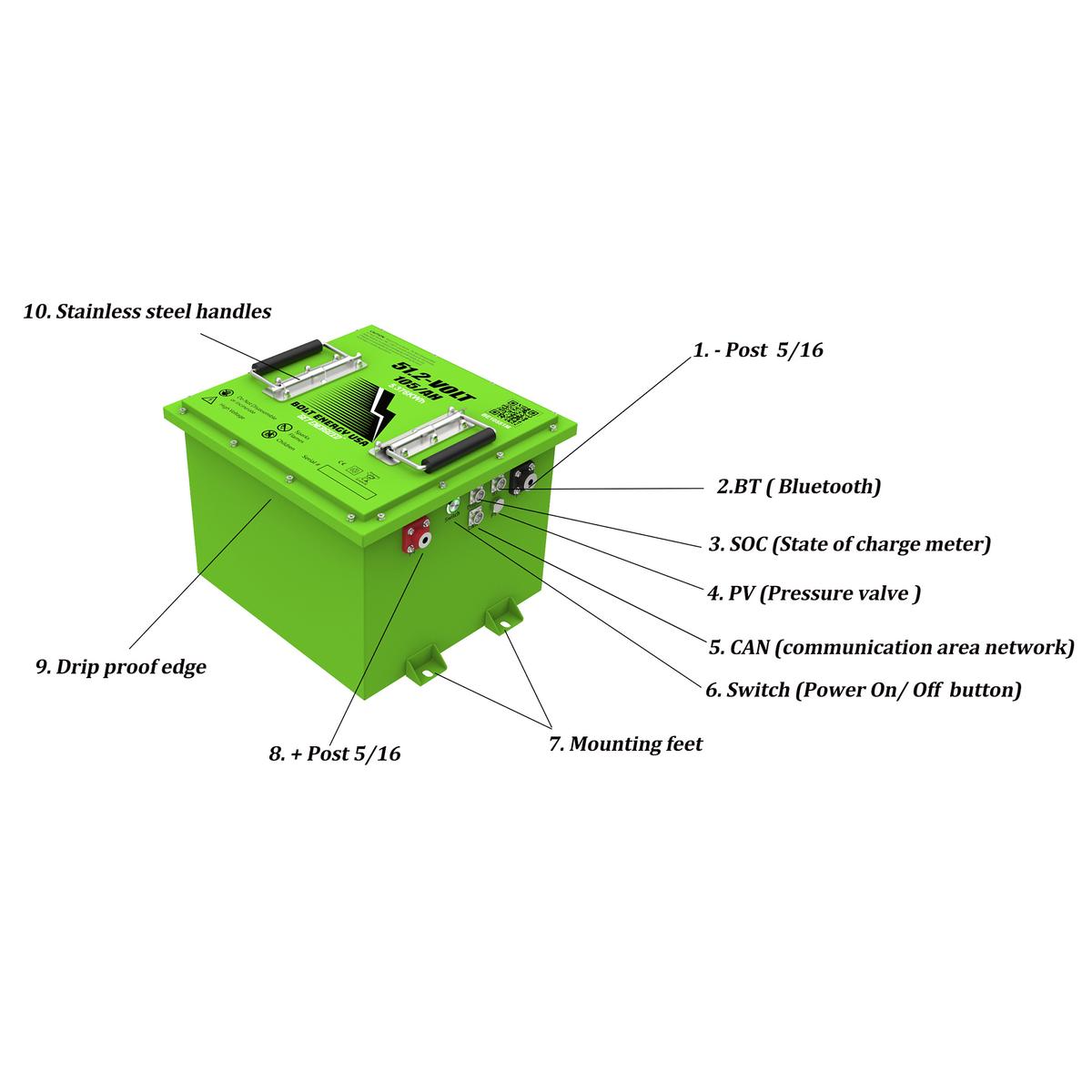

Mechanical Specifications:

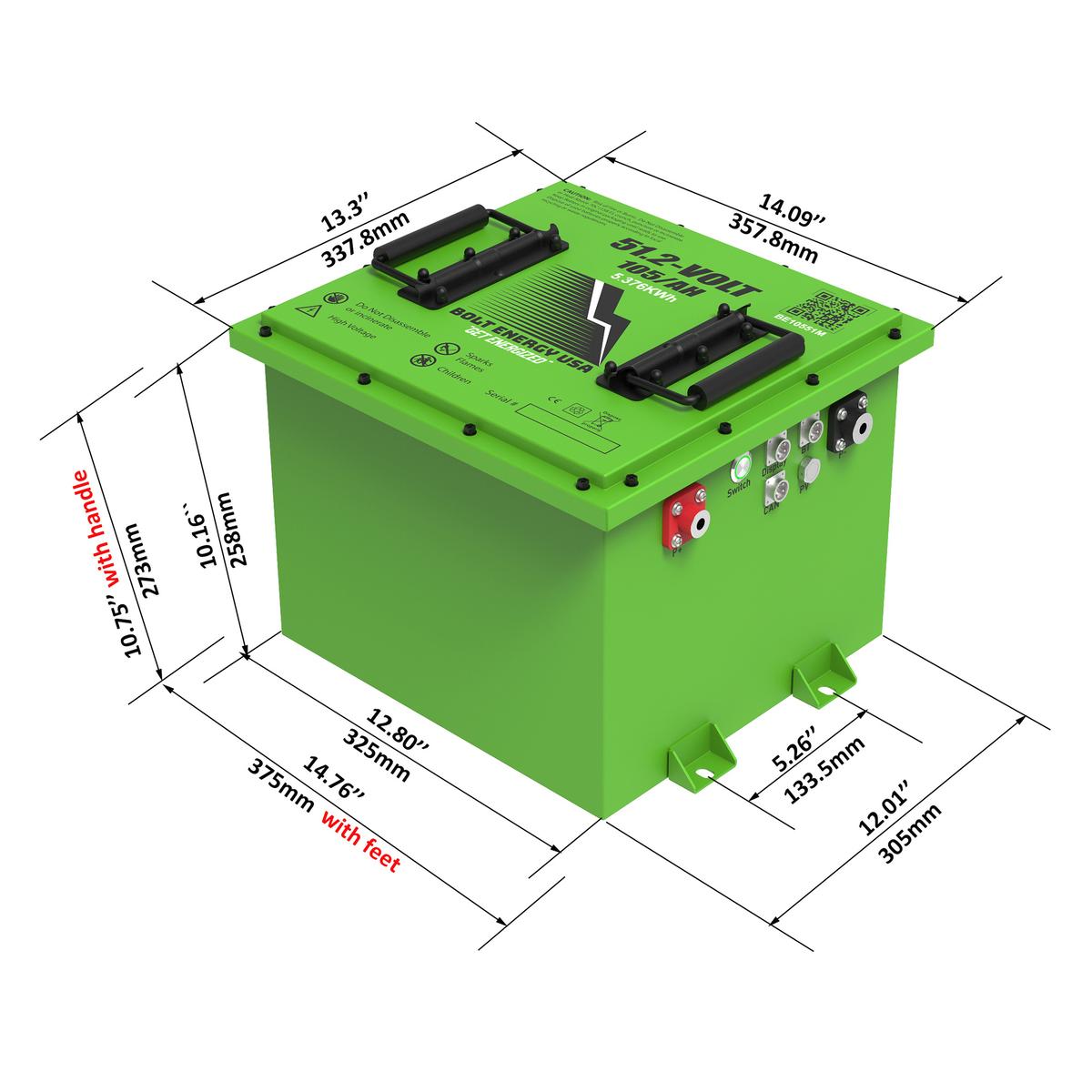

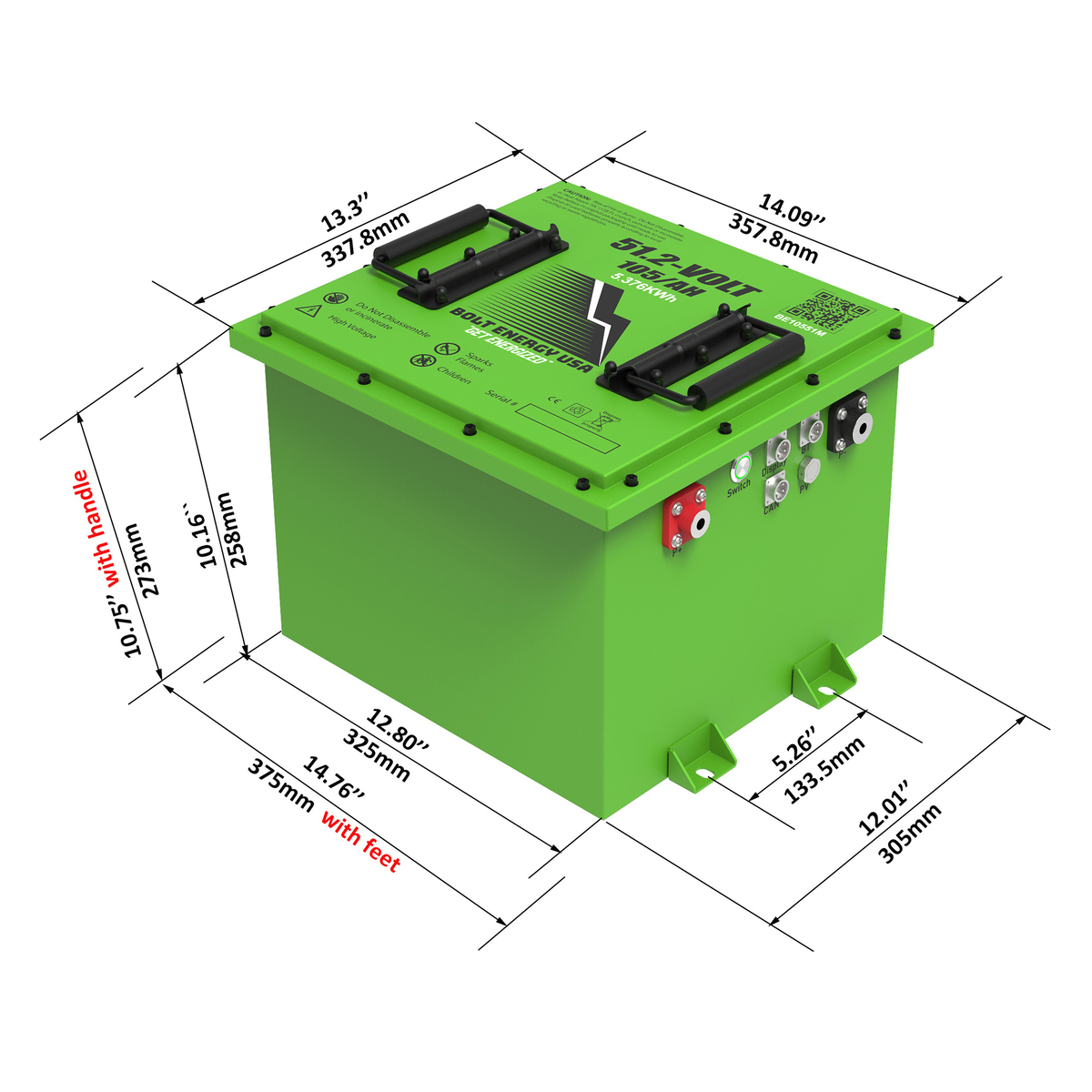

  • Dimensions (L x W x H): 12.8" x 12.01" x 10.42"
  • Weight: 100.8lbs (45.7kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P16S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Standard
  • Cell Type – Chemistry: Prismatic- LiFePO4

Communication:

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

Make
ICON
Voltage
51V
Unit
EA
Make Model Year Power
ICON I20 2017 2022
ICON I40 2017 2022
ICON I60 2017 2022
ICON I40F 2017 2022
ICON I60F 2017 2022
Freight Type
Standard
Brand
Bolt Energy USA
